Training NOCD on Microsoft Academic Graph - NOCD - Neural Overlapping Community Detection

This notebook demonstrates training the Neural Overlapping Community Detection model on a Facebook ego network dataset, reproducing the original interactive notebook workflow with the modernized codebase.

%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt

from nocd import NOCD
from nocd.data import load_dataset
from nocd.metrics import overlapping_nmi, symmetric_jaccard, evaluate_unsupervised
from nocd.utils import plot_sparse_clustered_adjacency

/home/runner/work/nocd/nocd/.venv/lib/python3.14/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Load the dataset¶

A (adjacency matrix): scipy.sparse.csr_matrix of size [N, N]
X (attribute matrix): scipy.sparse.csr_matrix of size [N, D]
Z_gt (ground truth communities): np.ndarray of size [N, K]

graph = load_dataset('../data/facebook_ego/fb_698.npz')
A, X, Z_gt = graph['A'], graph['X'], graph['Z']
N, K = Z_gt.shape
print(f'Nodes: {N}, Features: {X.shape[1]}, Communities: {K}, Edges: {A.nnz}')

Nodes: 66, Features: 6, Communities: 13, Edges: 540

/home/runner/work/nocd/nocd/.venv/lib/python3.14/site-packages/numpy/lib/_format_impl.py:838: VisibleDeprecationWarning: dtype(): align should be passed as Python or NumPy boolean but got `align=0`. Did you mean to pass a tuple to create a subarray type? (Deprecated NumPy 2.4)
  array = pickle.load(fp, **pickle_kwargs)

Train the model¶

Using the scikit-learn compatible NOCD estimator with GCN + batch norm.

model = NOCD(
    num_communities=K,
    model_type='gcn',
    hidden_dims=(64,),
    batch_norm=True,
    dropout=0.5,
    lr=1e-3,
    weight_decay=1e-2,
    max_epochs=200,
    display_step=50,
    balance_loss=True,
    stochastic_loss=True,
    batch_size=5000,
)
model.fit(A, X, y=Z_gt)

Using device: cpu

Epoch    0, loss = 0.5837, nmi = 0.2020

Epoch   50, loss = 0.4017, nmi = 0.1837

Epoch  100, loss = 0.3174, nmi = 0.2819

Epoch  150, loss = 0.2853, nmi = 0.2890

Epoch  200, loss = 0.2724, nmi = 0.3228

Training complete. Best NMI: 0.3228

Evaluate¶

Z_pred = model.predict(A, X)
Z_soft = model.predict_proba(A, X)

nmi = overlapping_nmi(Z_pred, Z_gt)
jac = symmetric_jaccard(Z_pred, Z_gt)
unsup = evaluate_unsupervised(Z_pred, A)

print(f'Overlapping NMI: {nmi:.4f}')
print(f'Symmetric Jaccard: {jac:.4f}')
for k, v in unsup.items():
    print(f'{k}: {v:.4f}')

Overlapping NMI: 0.3228
Symmetric Jaccard: 0.2705
coverage: 0.8074
density: 0.6418
conductance: 0.2029
clustering_coef: 0.4011

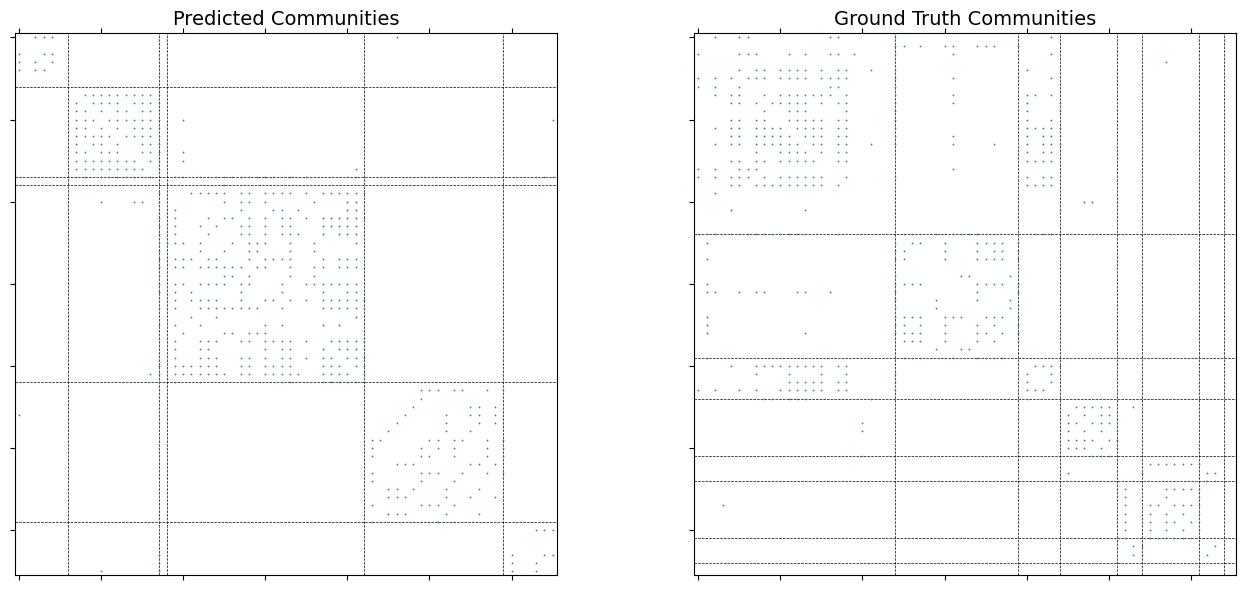

Visualize the adjacency matrix sorted by communities¶

Left: predicted communities. Right: ground truth.

fig, axes = plt.subplots(1, 2, figsize=(14, 6))

z_pred = np.argmax(Z_soft, axis=1)
o_pred = np.argsort(z_pred)
plot_sparse_clustered_adjacency(A, K, z_pred, o_pred, ax=axes[0], markersize=0.3)
axes[0].set_title('Predicted Communities', fontsize=14)

z_gt = np.argmax(Z_gt, axis=1)
o_gt = np.argsort(z_gt)
plot_sparse_clustered_adjacency(A, K, z_gt, o_gt, ax=axes[1], markersize=0.3)
axes[1].set_title('Ground Truth Communities', fontsize=14)

plt.tight_layout()
plt.show()

Save and reload¶

The model can be saved and loaded for later use.

model.save('/tmp/nocd_demo.pt')

loaded = NOCD.load('/tmp/nocd_demo.pt')
Z_loaded = loaded.predict_proba(A, X)
print('Predictions match:', np.allclose(Z_soft, Z_loaded, atol=1e-5))

Predictions match: True
